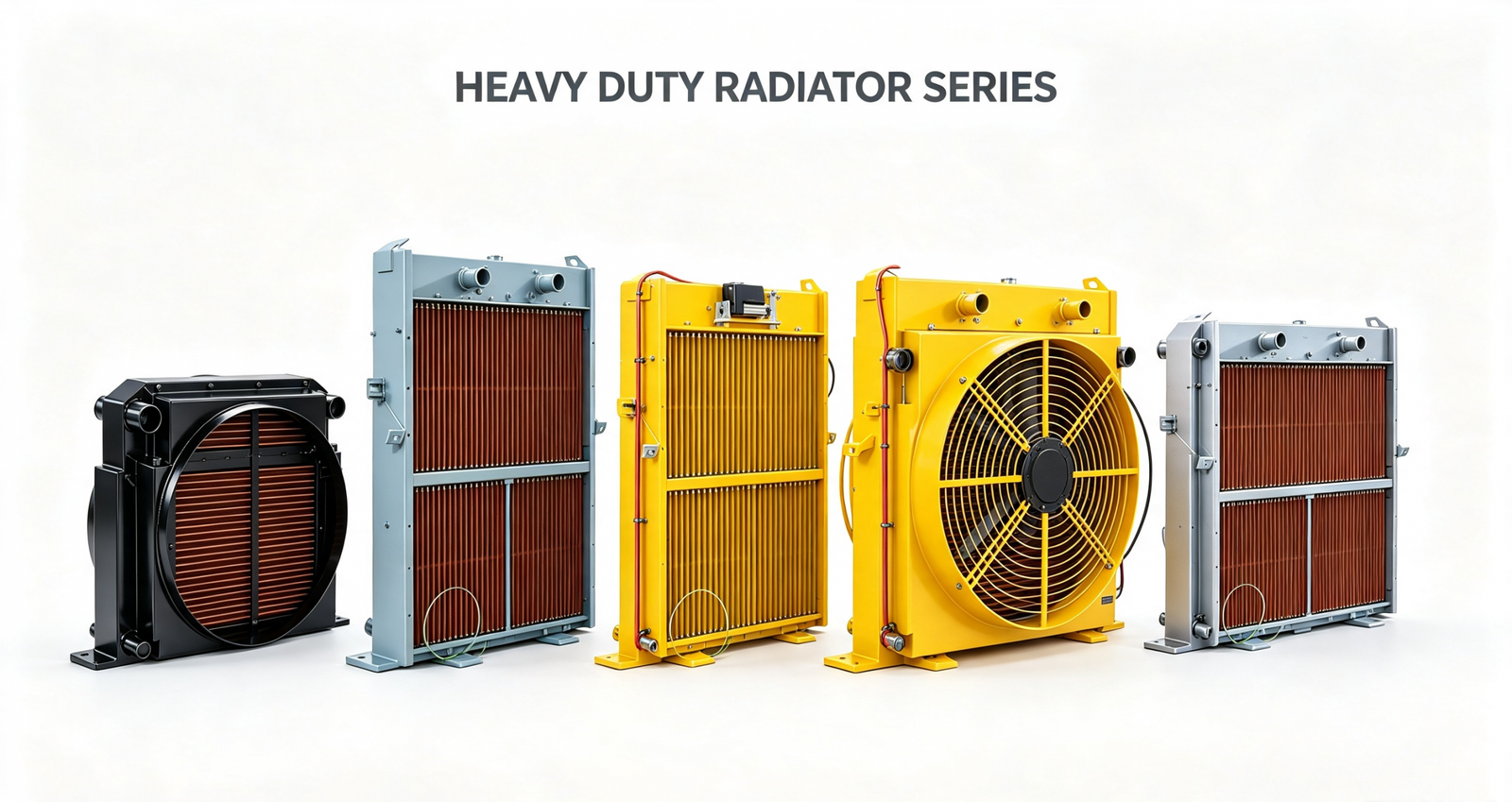

Copper Core Radiators

Heavy-duty copper core radiators engineered for demanding industrial cooling applications. Our copper core radiators deliver superior heat dissipation, exceptional durability, and reliable performance in the harshest operating environments. Primarily serving generator sets and heavy mining machinery with fully customized design capabilities.

Why Copper Core?
Copper core radiators provide 40% higher thermal conductivity than aluminum alternatives, superior solderability for field repairs, and proven reliability in extreme-duty cycles. All our copper core radiators are custom-engineered to match specific equipment specifications — we do not offer off-the-shelf universal models. Each radiator is designed according to your equipment’s cooling requirements, dimensional constraints, and operating environment.

Generator Set Radiators

Diesel & Gas Generator Cooling · Remote & Standby

Copper core radiators specifically designed for diesel and natural gas generator sets ranging from small standby units to large prime power installations. Built to handle continuous thermal cycling and 24/7 operation in remote locations where reliability is critical and maintenance access is limited.

Core Type Copper Tube & Copper Fin / Copper Tube & Aluminum Fin
Cooling Capacity 50 kW to 2500 kW thermal rejection
Fin Density 6–14 FPI (custom selectable)
Header Material Brass / Copper / Steel (application dependent)
Mounting Type Skid-mounted / Chassis-mounted / Remote
Design Standard Per engine manufacturer specifications
Diesel Generators Gas Generators Standby Power Prime Power Data Centers Hospitals
Custom Engineering Per Engine Model View Products

Mining Machinery Radiators

Extreme Duty · Off-Highway Equipment Cooling

Reinforced copper core radiators built for the extreme demands of surface and underground mining operations. Designed to withstand heavy vibration, shock loads, dust-laden environments, and continuous high-ambient temperature operation. Each radiator is engineered to the specific equipment model and mine site conditions.

Core Type Heavy-Duty Copper Tube & Copper Fin
Cooling Capacity 100 kW to 3000 kW thermal rejection
Fin Density 4–10 FPI (wide spacing for dust environments)
Frame Construction Heavy-gauge steel with reinforced mounting points
Protection Features Stone guard / Debris screen / Corrosion coating
Design Standard Per OEM equipment specifications
Dump Trucks Excavators Loaders Bulldozers Drill Rigs Underground Equipment
Custom Engineering Per Machine Model View Products

Industrial Engine Radiators

Stationary Engine Cooling · Pumps & Compressors

Copper core radiators for stationary industrial engines used in water pumps, air compressors, crushers, and other fixed equipment. Designed for continuous-duty operation with easy maintenance access. Can be configured for jacket water, aftercooler, and combined cooling circuits.

Core Type Copper Tube & Copper Fin / Copper Tube & Aluminum Fin
Cooling Capacity 30 kW to 1500 kW thermal rejection
Fin Density 6–12 FPI
Circuit Options Single / Dual / Triple circuit configurations
Fan Configuration Engine-driven / Electric / Hydraulic
Design Standard Per engine manufacturer & site specifications
Water Pumps Air Compressors Crushers Conveyors Oil & Gas Equipment
Custom Engineering Per Application View Products

Locomotive & Rail Traction Radiators

Diesel Locomotive Cooling · Rail Vehicle Systems

Heavy-duty copper core radiators for diesel-electric locomotives, rail traction engines, and railway maintenance equipment. Designed to meet railway industry standards for vibration resistance, thermal cycling endurance, and extended service intervals in mainline and shunting operations.

Core Type Copper Tube & Copper Fin (reinforced construction)
Cooling Capacity 200 kW to 3000 kW thermal rejection
Fin Density 5–10 FPI
Header Material Brass / Naval Brass
Mounting Type Locomotive-specific frame integration
Design Standard Railway industry specifications
Diesel Locomotives Shunting Engines Rail Maintenance Vehicles Light Rail Mining Railways
Custom Engineering Per Locomotive Model View Products

Replacement & Retrofit Radiators

OEM Replacement · Performance Upgrade Solutions

Direct replacement copper core radiators manufactured to original equipment specifications or upgraded designs for improved cooling performance. Ideal for extending the service life of aging equipment, replacing failed aluminum radiators with more durable copper core alternatives, and upgrading cooling capacity for engines operating in extreme climates.

Core Type Copper Tube & Copper Fin (matching or upgraded spec)
Fitment Direct bolt-in replacement to OEM dimensions
Performance Option Standard / High-capacity upgraded core
Compatibility Caterpillar / Cummins / MTU / Komatsu / Hitachi & more
Lead Time 2–6 weeks depending on complexity
Design Source OEM drawings / sample reverse engineering / site measurement
OEM Replacement Performance Upgrade Aluminum to Copper Conversion Fleet Standardization Emergency Replacement
Reverse Engineering & Custom Build View Products

Primary Application Sectors

Our copper core radiators are purpose-built for the most demanding industrial cooling applications. Below are the key sectors we serve, with each radiator engineered to the specific requirements of the equipment and operating environment.

Power Generation

Diesel & gas generator sets from 50kW to 2.5MW for standby, prime, and continuous power applications worldwide.

Surface Mining

Haul trucks, excavators, wheel loaders, and dozers operating in high-ambient, high-dust environments with continuous duty cycles.

Underground Mining

LHD loaders, drill rigs, and underground trucks requiring compact, high-efficiency cooling in confined spaces with restricted airflow.

Industrial Engines

Stationary engines driving pumps, compressors, crushers, and processing equipment in factories, quarries, and processing plants.

Rail Traction

Diesel-electric locomotives for mainline freight, shunting operations, and mining railway systems with extended service requirements.

Military & Defense

Ruggedized cooling solutions for military generator sets, mobile equipment, and specialized defense applications requiring MIL-SPEC reliability.

Superior Thermal Conductivity

Copper core delivers 40% better heat transfer than aluminum for maximum cooling efficiency.

Field Repairable

Copper construction allows on-site soldering repairs, minimizing equipment downtime in remote locations.

Corrosion Resistant

Natural corrosion resistance with optional protective coatings for marine and high-humidity environments.

Extended Service Life

Proven longevity in extreme duty cycles where aluminum radiators typically fail prematurely.
